DSL-20-25-270-CC-A-S2-KF-B Swivel/linear unit

Manufacturer's No: DSL-20-25-270-CC-A-S2-KF-B     Manufacturer: Festo

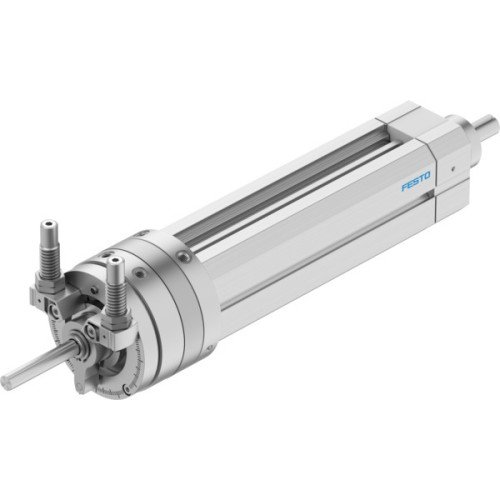

DSL-20-25-270-CC-A-S2-KF-B Swivel/linear unit

Availability On Request

£1,676.47
  • Rotary movement: 0° - 270° infinitely adjustable
  • Linear stroke: 25 mm with a piston diameter of 20 mm
  • Independent actuation of rotary and linear movements
  • Cushioning angle: 12° with shock absorber and elastic cushioning rings/plates at both ends
  • Swivel angle range: 0° - 246°
  • Operating pressure: 2.5 BAR to 8 BAR
  • Max. impact speed: 0.5 m/s with a max. swivel frequency of 1 HZ at 0.6 MPa
  • Repetition accuracy: 0.1° with a rotary angle backlash of 0.05°
  • Material: Wrought aluminum alloy cover and housing, tempered steel piston rod, TPE-U(PU) seals
  • Ambient temperature range: -10°C to 60°C

Read more

  • Product weight: 1220 g with a basic weight for 0 mm stroke and additional weight per 10 mm stroke
  • Mounting options: Clamped in T-slot, via male thread, or either
  • Pneumatic connection: M5
  • Design: Vane with position detection via proximity switch
  • Corrosion resistance class: Low corrosion stress (CRC: 1)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] with lubricated operation possible
  • Type of operation: Double-acting with protection against torque/guide via ball bearings
  • Permissible mass moment of inertia: 0.0012 KGm²
  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 120.5 N (return stroke) and 158 N (advance stroke)
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi): 2.5 Nm


Product

Manufacturer Material ID -
DSL-20-25-270-CC-A-S2-KF-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
