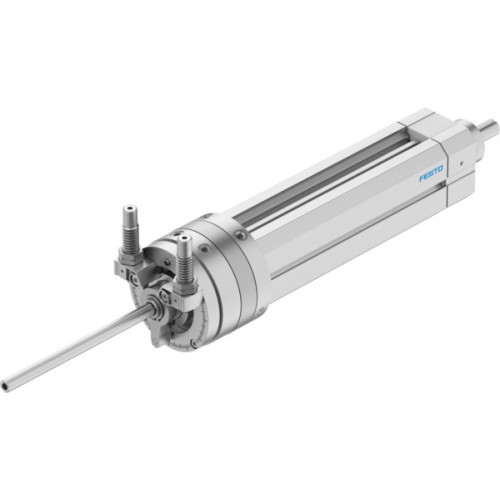

DSL-20-40-270-CC-A-S20-KF-B Swivel/linear unit

Manufacturer's No: DSL-20-40-270-CC-A-S20-KF-B     Manufacturer: Festo
DSL-20-40-270-CC-A-S20-KF-B Swivel/linear unit

Availability On Request

£1,918.60
  • Swivel/linear unit for proximity sensing
  • Rotary movement of 0° - 270° infinitely adjustable
  • Linear stroke of 40 mm with a piston diameter of 20 mm
  • Swivel angle range from 0° to 246°
  • Cushioning with shock absorber and elastic cushioning rings/plates at both ends
  • Double-acting vane design with position detection via proximity switch
  • Operating pressure range from 2.5 BAR to 8 BAR
  • Max. impact speed of 0.5 m/s and max. swivel frequency of 1 HZ at 0.6 MPa
  • Low backlash of 0.05° and high repetition accuracy of 0.1°
  • Suitable for compressed air operation with lubricated option

Read more

  • Corrosion resistance class 1, LABS conformity VDMA24364-B2-L
  • Operating temperature range from -10°C to 60°C
  • Dynamic load torque of 0.35 Nm and theoretical force up to 158 N
  • Theoretical torque of 2.5 Nm and permissible mass moment of inertia of 0.0012 kgm²
  • Lightweight design with a product weight of 1220 g
  • Mounting options include clamped in T-slot or via male thread
  • Pneumatic connection size M5
  • Constructed with wrought aluminum alloy, anodized cover and housing, TPE-U(PU) seals, and tempered steel piston rod.


Product

Manufacturer Material ID -
DSL-20-40-270-CC-A-S20-KF-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
