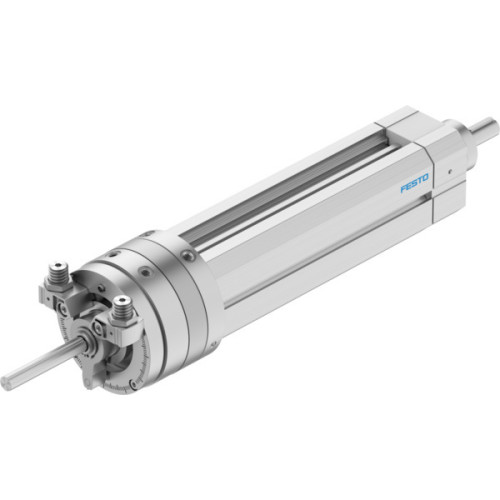

DSL-20-50-270-P-A-S2-KF-B Swivel/linear unit

Manufacturer's No: DSL-20-50-270-P-A-S2-KF-B     Manufacturer: Festo
DSL-20-50-270-P-A-S2-KF-B Swivel/linear unit

Availability On Request

£1,493.07
  • Rotary movement of 0° - 270° infinitely adjustable
  • Linear stroke of 50 mm with a piston diameter of 20 mm
  • Swivel angle range of 0° - 272° with flexible cushioning rings/plates at both ends
  • Double-acting operation with vane design and position detection via proximity switch
  • Operating pressure range from 2.5 BAR to 8 BAR
  • Max. impact speed of 0.5 m/s and max. swivel frequency of 2 Hz at 0.6 MPa
  • Repetition accuracy of 1° with a theoretical force of 120.5 N (return stroke) and 158 N (advance stroke) at 0.6 MPa
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Ambient temperature range from -10°C to 60°C
  • Product weight of 1140 g with a permissible mass moment of inertia of 0.00007 kgm^2

Read more

  • Material: Wrought aluminum alloy cover, anodized; TPE-U(PU) seals; smooth anodized aluminum alloy housing; tempered steel piston rod
  • Mounting options: Clamped in T-slot, via male thread, or either
  • Pneumatic connection: M5
  • Note: Lubricated operation possible, corrosion resistance to VDMA24364-B2-L standard


Product

Manufacturer Material ID -
DSL-20-50-270-P-A-S2-KF-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,493.07
