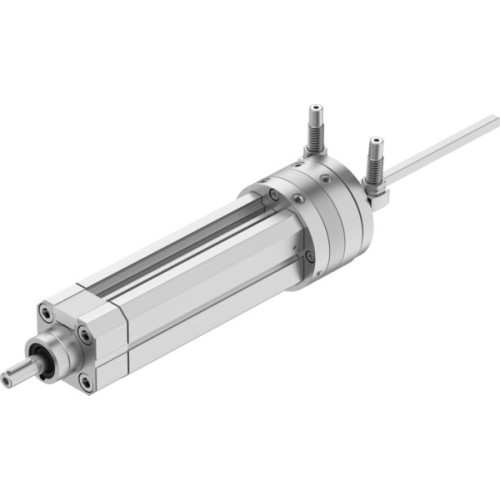

DSL-20-80-270-CC-A-S20-B Swivel/linear unit

Manufacturer's No: DSL-20-80-270-CC-A-S20-B     Manufacturer: Festo
DSL-20-80-270-CC-A-S20-B Swivel/linear unit

Availability On Request

£1,297.00
  • Swivel/linear unit for proximity sensing
  • Rotary movement: 0° - 270° infinitely adjustable
  • Linear stroke: 80 mm with a piston diameter of 20 mm
  • Independent actuation of rotary and linear movements
  • Cushioning angle: 12° with shock absorber and elastic cushioning rings/plates at both ends
  • Swivel angle range: 0° - 246°
  • Operating pressure: 2.5 BAR to 8 BAR
  • Max. impact speed: 0.5 m/s with a max swivel frequency of 1 HZ
  • Repetition accuracy: 0.1° with a rotary angle backlash of 2°
  • Design: Vane with double-acting operation

Read more

  • Position detection via proximity switch
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Ambient temperature range: -10°C to 60°C
  • Product weight: 1130 g with mounting options in T-slot or via male thread
  • Pneumatic connection: M5
  • Materials: Wrought aluminum alloy cover, anodized cover and housing, TPE-U(PU) seals, tempered steel piston rod
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Dynamic load torque: 0.2 Nm with theoretical forces at 0.6 MPa (6 bar, 87 psi)
  • Permissible mass moment of inertia: 0.0012 kgm
  • Type of mounting: Clamped in T-slot or via male thread, either
  • Fine adjustment: -3°
  • Variants: Through, hollow piston rod


Product

Manufacturer Material ID -
DSL-20-80-270-CC-A-S20-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
