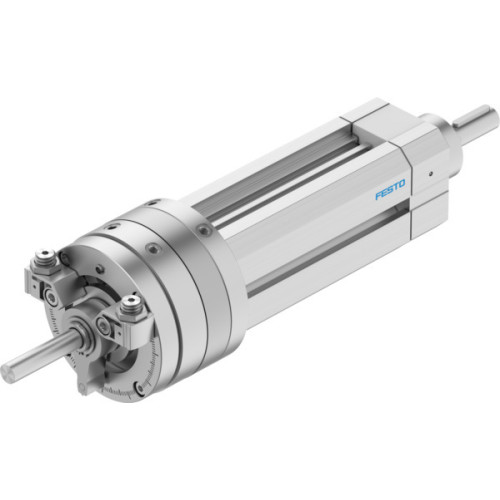

DSL-25-25-270-P-A-S2-KF-B Swivel/linear unit

Manufacturer's No: DSL-25-25-270-P-A-S2-KF-B     Manufacturer: Festo
DSL-25-25-270-P-A-S2-KF-B Swivel/linear unit

Availability On Request

£1,589.73
  • Swivel/linear unit for proximity sensing
  • Rotary movement of 0° - 270° infinitely adjustable
  • Linear stroke of 25 mm with a piston diameter of 25 mm
  • Swivel angle range from 0° to 272°
  • Double-acting operation with vane design
  • Position detection via proximity switch
  • Operating pressure range from 2.5 BAR to 8 BAR
  • Max. impact speed of 0.5 m/s and max. swivel frequency of 2 HZ at 0.6 MPa
  • Repetition accuracy of 1° with a dynamic load torque of 0.7 Nm
  • Corrosion resistance class CRC: 1 - Low corrosion stress

Read more

  • Ambient temperature range from -10°C to 60°C
  • Product weight of 1650 g with mounting options including clamped in T-slot or via male thread
  • Pneumatic connection: M5
  • Materials: Wrought aluminum alloy cover and housing, anodized finish, TPE-U(PU) seals, tempered steel piston rod


Product

Manufacturer Material ID -
DSL-25-25-270-P-A-S2-KF-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,589.73
