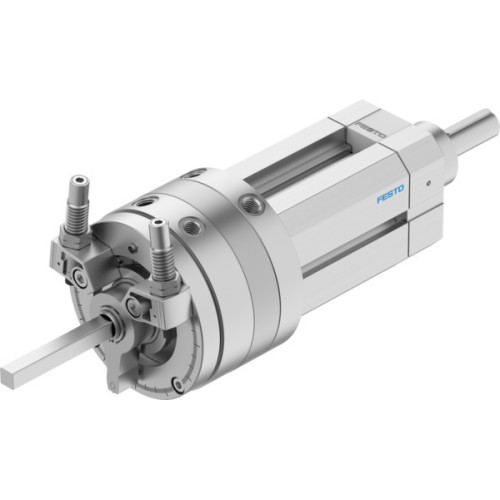

DSL-32-80-270-CC-A-S20-B Swivel/linear unit

Manufacturer's No: DSL-32-80-270-CC-A-S20-B     Manufacturer: Festo
DSL-32-80-270-CC-A-S20-B Swivel/linear unit

Availability Back Order

£1,710.80
  • Swivel/linear unit for proximity sensing
  • Rotary movement: 0° - 270° infinitely adjustable
  • Linear stroke: 80 mm with a piston diameter of 32 mm
  • Swivel angle range: 0° - 246°
  • Cushioning: Shock absorber and elastic cushioning rings/plates at both ends
  • Operating pressure: 2.5 BAR to 8 BAR
  • Max. impact speed: 0.5 m/s
  • Max. swivel frequency at 0.6 MPa: 0.7 Hz
  • Repetition accuracy: 0.1°
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Ambient temperature range: -10°C to 60°C
  • Dynamic load torque: 0.8 Nm
  • Theoretical force at 0.6 MPa, return stroke: 294 N
  • Theoretical force at 0.6 MPa, advance stroke: 422.5 N
  • Theoretical torque at 0.6 MPa: 10 Nm
  • Permissible mass moment of inertia: 0.0021 kgm^2
  • Product weight: 3000 g
  • Mounting options: Clamped in T-slot, via male thread, or either
  • Pneumatic connection: G1/8
  • Materials: Wrought aluminum alloy cover, anodized cover, TPE-U(PU) seals, wrought aluminum alloy housing, smooth anodized housing, tempered steel piston rod

Accessories

PUSH IN FITTING (PK 10)

Product Code - 186096
Price £2.38
Back Order

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

QS-G1/8-6-I PUSH-IN FITTING

Product Code - 186107
Price £2.72
Back Order

QSL-G1/8-6 PUSH-IN L-FITTING

Product Code - 186117
Price £3.66
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
DSL-32-80-270-CC-A-S20-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
