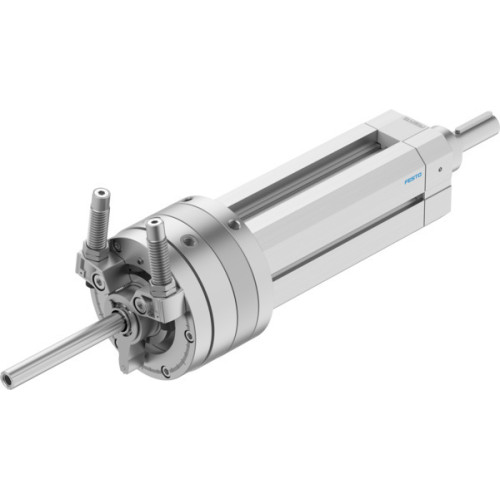

DSL-40-25-270-CC-A-S20-KF-B Swivel/linear unit

Manufacturer's No: DSL-40-25-270-CC-A-S20-KF-B     Manufacturer: Festo
DSL-40-25-270-CC-A-S20-KF-B Swivel/linear unit

Availability On Request

£2,917.52
  • Swivel/linear unit for proximity sensing
  • Rotary movement of 0° - 270° infinitely adjustable
  • Linear stroke of 25 mm with a piston diameter of 40 mm
  • Swivel angle range from 0° to 240°
  • Cushioning with shock absorber and elastic cushioning rings/plates at both ends
  • Double-acting vane design with position detection via proximity switch
  • Operating pressure range from 2.5 BAR to 8 BAR
  • Max. impact speed of 0.5 m/s and max. swivel frequency of 0.7 Hz at 0.6 MPa
  • Low rotary angle backlash of 0.05° and high repetition accuracy of 0.1°
  • Suitable for compressed air operation with lubricated operation possible

Read more

  • Corrosion resistance class 1, suitable for low corrosion stress environments
  • Temperature range from -10°C to 60°C
  • Dynamic load torque of 5.4 Nm with theoretical forces at 0.6 MPa of 495 N (return stroke) and 603 N (advance stroke)
  • Theoretical torque at 0.6 MPa of 20 Nm and permissible mass moment of inertia of 0.004 kgm^2
  • Product weight of 5350 g with additional weight per 10 mm stroke of 175 g
  • Various mounting options including clamped in T-slot or via male thread
  • Pneumatic connection size G1/8
  • Constructed with materials such as wrought aluminum alloy, anodized cover, TPE-U(PU) seals, and tempered steel piston rod


Product

Manufacturer Material ID -
DSL-40-25-270-CC-A-S20-KF-B
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£2,917.52
