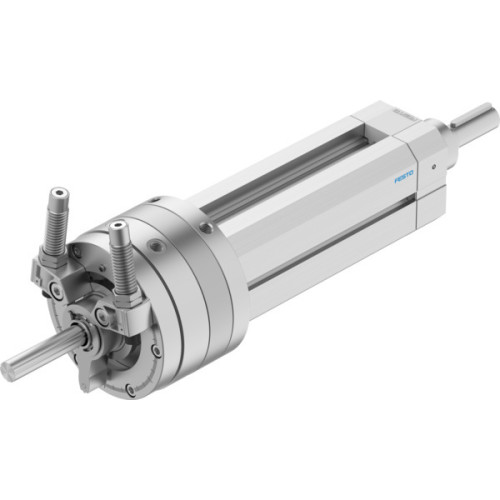

DSL-40-50-270-CC-A-S2-KF-B Swivel/linear unit

Manufacturer's No: DSL-40-50-270-CC-A-S2-KF-B     Manufacturer: Festo
DSL-40-50-270-CC-A-S2-KF-B Swivel/linear unit

Availability On Request

£2,570.19
  • Swivel/linear unit for proximity sensing
  • Rotary movement of 0° - 270° infinitely adjustable
  • Linear stroke of 50mm with a piston diameter of 40mm
  • Swivel angle range from 0° to 240°
  • Cushioning with shock absorber and elastic cushioning rings/plates at both ends
  • Double-acting vane design with position detection via proximity switch
  • Operating pressure range from 2.5 BAR to 8 BAR
  • Max. impact speed of 0.5 m/s and max. swivel frequency of 0.7 Hz at 0.6 MPa
  • High precision with rotary angle backlash of 0.05° and repetition accuracy of 0.1°
  • Corrosion resistance class CRC: 1 - Low corrosion stress

Read more

  • Temperature range from -10°C to 60°C
  • Dynamic load torque of 5.4 Nm and theoretical force up to 603 N
  • Theoretical torque of 20 Nm at 0.6 MPa
  • Permissible mass moment of inertia of 0.004 kgm²
  • Lightweight design with a product weight of 5350g
  • Various mounting options including clamped in T-slot or via male thread
  • Pneumatic connection: G1/8
  • High-quality materials including wrought aluminum alloy, anodized cover, TPE-U(PU) seals, and tempered steel piston rod


Product

Manufacturer Material ID -
DSL-40-50-270-CC-A-S2-KF-B
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£2,570.19
