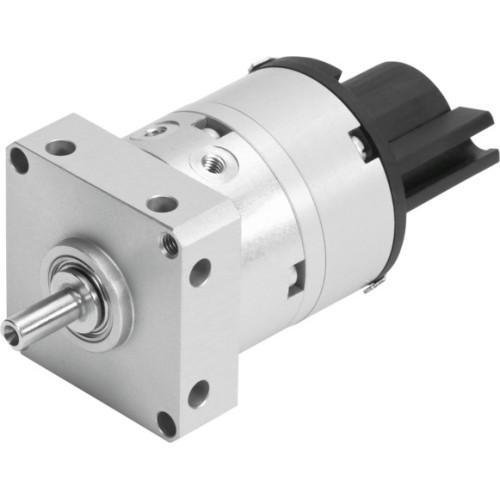

DSM-10-240-P-A-FF Semi-rotary drive

Manufacturer's No: DSM-10-240-P-A-FF     Manufacturer: Festo
DSM-10-240-P-A-FF Semi-rotary drive

Availability On Request

£405.35
  • Type: Semi-rotary drive DSM-10-240-P-A-FF
  • Size: 10
  • Rotation Angle Adjustment Range: 0 - 200 degrees
  • Swivel Angle: 0 - 200 degrees
  • Cushioning Angle: 0 degrees
  • Mode of Operation: Double-acting
  • Design: Vane
  • Position Detection: Via proximity switch
  • Operating Pressure: 2.5 BAR to 8 BAR
  • Max. Swivel Frequency at 0.6 MPa: 2 HZ

Read more

  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubrication: Lubricated operation possible
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Ambient Temperature: 0°C to 60°C
  • Theoretical Torque at 0.6 MPa: 0.85 NM
  • Permissible Mass Moment of Inertia: 0.0026 KGY
  • Product Weight: 255 G
  • Mounting: Via female thread
  • Pneumatic Connection: M3
  • Material Drive Shaft: High-alloy stainless steel
  • Material Seals: TPE-U(PU)
  • Material Housing: Aluminium, Anodised
  • RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-10-240-P-A-FF
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
