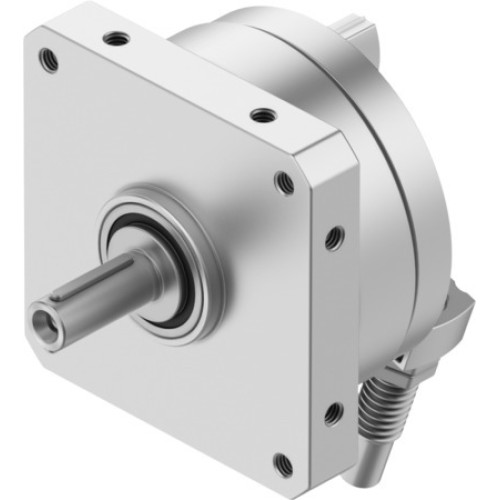

DSM-12-270-CC-A-B Semi-rotary drive

Manufacturer's No: DSM-12-270-CC-A-B     Manufacturer: Festo
DSM-12-270-CC-A-B Semi-rotary drive

Availability On Request

£390.17
  • Type: Semi-rotary drive DSM-12-270-CC-A-B
  • Size: 12
  • Cushioning: Shock absorber at both ends, Cushioning angle 15°
  • Rotation angle adjustment range: 0 - 246°
  • Swivel angle: 0 - 246°
  • Mounting position: Optional
  • Mode of operation: Double-acting, Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 1.5 Hz

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 18 N, Max. radial force: 45 N
  • Theoretical torque at 0.6 MPa: 1.25 Nm
  • Permissible mass moment of inertia: 0.008 kgm^2
  • Product weight: 285 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • Materials: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
DSM-12-270-CC-A-B
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
26101502
Festo

Availability On Request

£390.17
Sign in or Register for customer prices.
