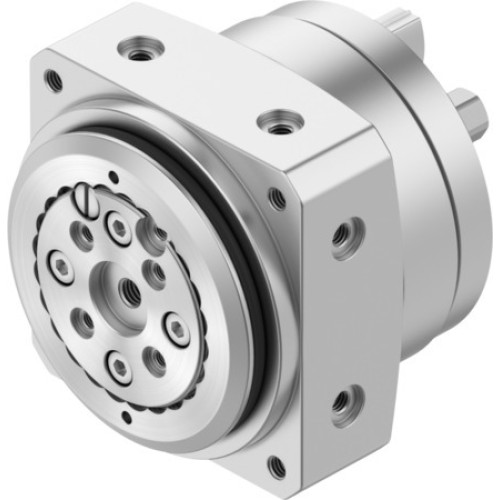

DSM-12-270-HD-A-B Semi-rotary drive

Manufacturer's No: DSM-12-270-HD-A-B     Manufacturer: Festo
DSM-12-270-HD-A-B Semi-rotary drive

Availability Back Order

£550.59
  • Semi-rotary drive with size 12
  • Swivel angle: 270 degrees
  • Mounting position: optional
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.3 MPa, 1 MPa, 3 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 1.5 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 180 N
  • Max. radial force: 200 N
  • Theoretical torque at 0.6 MPa: 1.25 Nm
  • Product weight: 375 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • RoHS-compliant materials: Steel drive shaft, nickel-plated drive shaft, TPE-U(PU) seals, wrought aluminium alloy housing

Accessories

QSM-M5-4 PUSH-IN FITTING

Product Code - 153304
Price £2.53
Back Order

QSML-M5-4 PUSH-IN L-FITTING

Product Code - 153333
Price £3.66
Back Order


Product

Manufacturer Material ID -
DSM-12-270-HD-A-B
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
