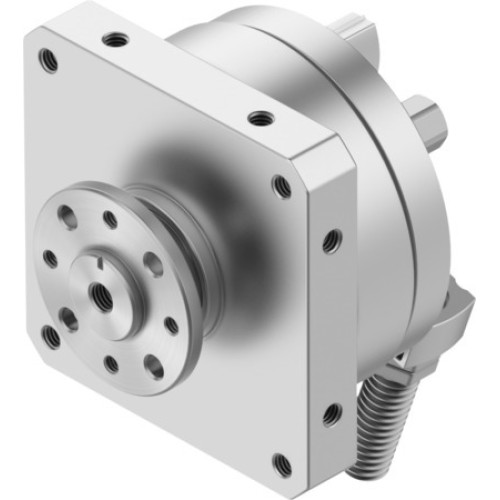

DSM-12-270-P1-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-12-270-P1-FW-A-B     Manufacturer: Festo
DSM-12-270-P1-FW-A-B Semi-rotary drive

Availability On Request

£299.56
  • Type: Semi-rotary drive DSM-12-270-P1-FW-A-B
  • Size: 12
  • Cushioning: Elastic cushioning rings/pads with fixed stop
  • Rotation angle adjustment range: 0 - 246 degrees
  • Swivel angle: 0 - 246 degrees
  • Mode of operation: Double-acting
  • Design: Vane
  • Operating pressure: 0.2 MPa to 1 MPa (2 to 10 bar)
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Operating medium: Compressed air (ISO 8573-1:2010)

Read more

  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 18 N
  • Max. radial force: 45 N
  • Theoretical torque at 0.6 MPa: 1.25 Nm
  • Permissible mass moment of inertia: 0.015 kgm^2
  • Product weight: 303 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • Materials: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy


Product

Manufacturer Material ID -
DSM-12-270-P1-FW-A-B
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
