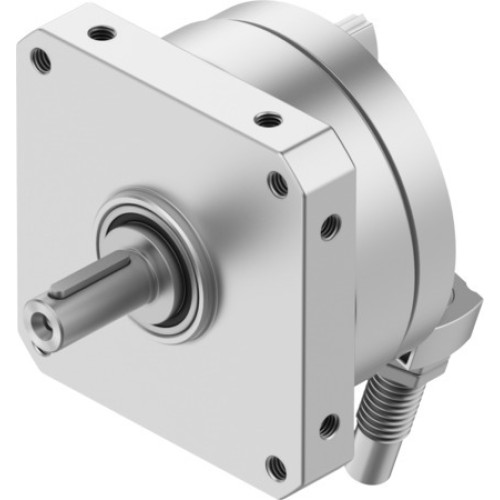

DSM-16-270-CC-A-B Semi-rotary drive

Manufacturer's No: DSM-16-270-CC-A-B     Manufacturer: Festo
DSM-16-270-CC-A-B Semi-rotary drive

Availability On Request

£427.69
  • Type: Semi-rotary drive
  • Model: DSM-16-270-CC-A-B
  • Size: 16
  • Cushioning: Shock absorber at both ends, Cushioning angle: 12 degrees
  • Rotation angle adjustment range: 0 - 246 degrees
  • Swivel angle: 0 - 246 degrees
  • Mounting position: Optional
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch

Read more

  • Operating pressure: 0.18 MPa to 1.8 bar
  • Max. swivel frequency at 0.6 MPa: 1 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -10 to 60 degrees Celsius
  • Max. axial force: 30 N, Max. radial force: 75 N
  • Theoretical torque at 0.6 MPa: 2.5 Nm
  • Permissible mass moment of inertia: 0.02 kgm^2
  • Product weight: 285 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • Material: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-16-270-CC-A-B
Net Weight -
0.56kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£427.69
