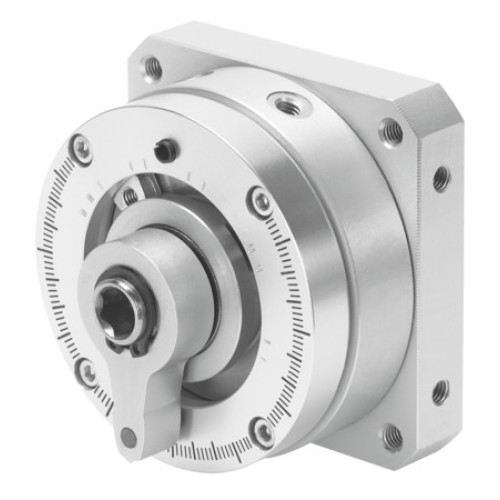

DSM-25-270-A-B Semi-rotary drive

Manufacturer's No: DSM-25-270-A-B     Manufacturer: Festo
DSM-25-270-A-B Semi-rotary drive

Availability On Request

£232.52
  • Size: 25
  • Swivel angle: 0 - 270 degrees
  • Mode of operation: Double-acting
  • Design: Rotary vane
  • Operating pressure: 0.15 MPa to 10 bar
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1

Read more

  • Ambient temperature: -10 to 60 degrees Celsius
  • Max. axial force: 50 N
  • Max. radial force: 120 N
  • Theoretical torque at 0.6 MPa: 5 Nm
  • Product weight: 620 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • Material: Drive shaft - Steel, Nickel-plated
  • Material: Seals - TPE-U(PU)
  • Material: Housing - Wrought aluminium alloy


Product

Manufacturer Material ID -
DSM-25-270-A-B
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
