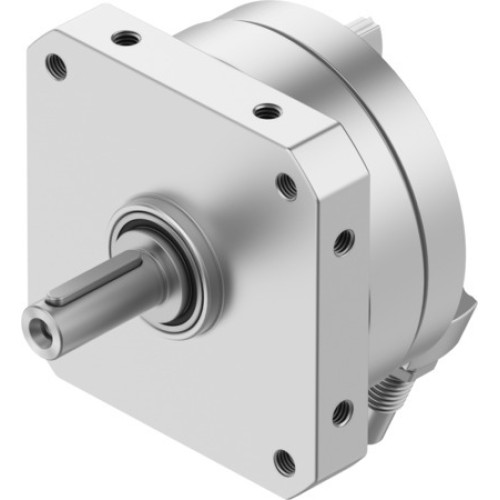

DSM-25-270-CC-A-B Semi-rotary drive

Manufacturer's No: DSM-25-270-CC-A-B     Manufacturer: Festo
DSM-25-270-CC-A-B Semi-rotary drive

Availability On Request

£449.71
  • Type: Semi-rotary drive DSM-25-270-CC-A-B
  • Size: 25
  • Cushioning: Shock absorber at both ends, Cushioning angle: 10 degrees
  • Rotation angle adjustment range: 0 - 246 degrees
  • Swivel angle: 0 - 246 degrees
  • Mounting position: Optional
  • Mode of operation: Double-acting, Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 1 Hz

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -10 to 60 degrees Celsius
  • Max. axial force: 50 N, Max. radial force: 120 N
  • Theoretical torque at 0.6 MPa: 5 Nm
  • Permissible mass moment of inertia: 0.03 kgm^2
  • Product weight: 710 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • Material: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-25-270-CC-A-B
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£449.71
