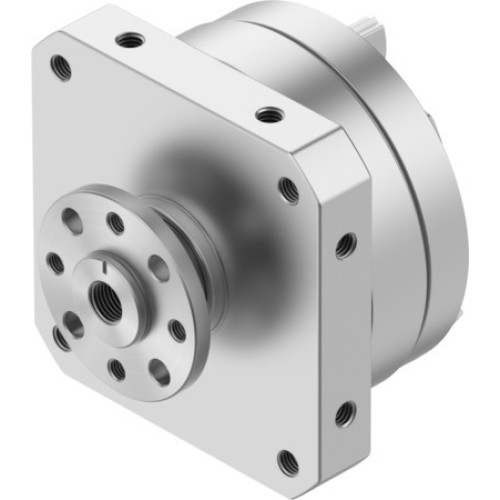

DSM-25-270-P-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-25-270-P-FW-A-B     Manufacturer: Festo
DSM-25-270-P-FW-A-B Semi-rotary drive

Availability On Request

£308.79
  • Type: Semi-rotary drive DSM-25-270-P-FW-A-B
  • Size: 25
  • Rotation Angle Adjustment Range: 0 - 270 degrees
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Design: Vane
  • Operating Pressure: 0.15 MPa to 10 bar
  • Max. Swivel Frequency: 2 Hz at 0.6 MPa
  • Operating Medium: Compressed air (ISO 8573-1:2010)
  • Corrosion Resistance Class: 0 (No corrosion stress)
  • Cleanroom Class: Class 6 (ISO 14644-1)

Read more

  • Temperature Range: -10°C to 60°C
  • Max. Axial Force: 50 N
  • Max. Radial Force: 120 N
  • Theoretical Torque: 5 Nm at 0.6 MPa
  • Permissible Mass Moment of Inertia: 0.015 kgm²
  • Product Weight: 725 g
  • Mounting: Via female thread
  • Pneumatic Connection: M5
  • Materials: Steel (drive shaft), Nickel-plated (drive shaft), TPE-U(PU) (seals), Wrought aluminium alloy (housing)
  • Compliance: RoHS, LABS (PWIS) conformity: VDMA24364-B1/B2-L


Product

Manufacturer Material ID -
DSM-25-270-P-FW-A-B
Net Weight -
0.79kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£308.79
