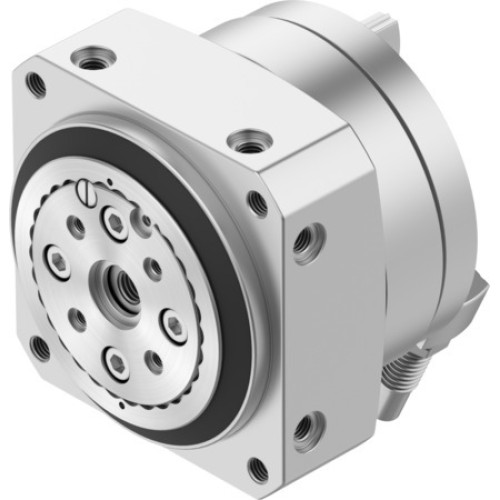

DSM-32-270-CC-HD-A-B Semi-rotary drive

Manufacturer's No: DSM-32-270-CC-HD-A-B     Manufacturer: Festo
DSM-32-270-CC-HD-A-B Semi-rotary drive

Availability On Request

£1,053.45
  • Semi-rotary drive DSM-32-270-CC-HD-A-B
  • Size: 32
  • Cushioning angle: 12°
  • Rotation angle adjustment range: 0° to 246°
  • Swivel angle: 0° to 246°
  • Cushioning: Shock absorber at both ends
  • Mounting position: Optional
  • Fine adjustment: -3°
  • Mode of operation: Double-acting
  • Design: Vane

Read more

  • Position detection: Via proximity switch
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 0.5 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 450 N
  • Max. radial force: 550 N
  • Theoretical torque at 0.6 MPa: 10 Nm
  • Permissible mass moment of inertia: 0.005 kgm^2
  • Product weight: 2020 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/8
  • Materials: RoHS-compliant, Steel drive shaft, Nickel-plated drive shaft, TPE-U(PU) seals, Wrought aluminium alloy housing


Product

Manufacturer Material ID -
DSM-32-270-CC-HD-A-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,053.45
