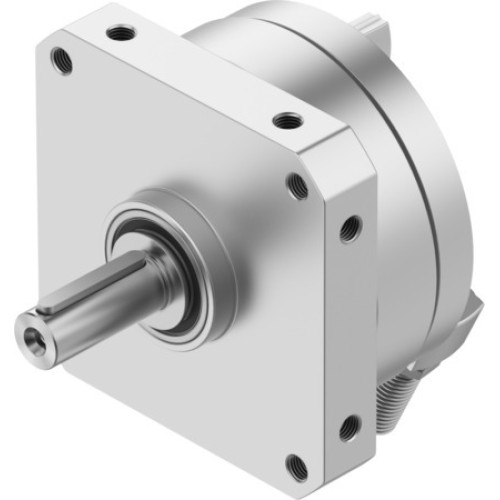

DSM-32-270-P1-A-B Semi-rotary drive

Manufacturer's No: DSM-32-270-P1-A-B     Manufacturer: Festo
DSM-32-270-P1-A-B Semi-rotary drive

Availability On Request

£461.52
  • Type: Semi-rotary drive
  • Model: DSM-32-270-P1-A-B
  • Size: 32
  • Cushioning: Elastic cushioning rings/pads with fixed stop
  • Rotation Angle Adjustment Range: 0 - 246 degrees
  • Swivel Angle: 0 - 246 degrees
  • Cushioning Angle: 6.5 degrees
  • Mounting Position: Optional
  • Fine Adjustment: -6 degrees
  • Mode of Operation: Double-acting

Read more

  • Design: Vane
  • Position Detection: Via proximity switch
  • Operating Pressure: 0.15 MPa to 1.5 bar
  • Max. Swivel Frequency at 0.6 MPa: 2 Hz
  • Operating Medium: Compressed air (ISO 8573-1:2010)
  • Corrosion Resistance Class: CRC 0 (No corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Ambient Temperature: -10°C to 60°C
  • Max. Axial Force: 75 N
  • Max. Radial Force: 200 N
  • Theoretical Torque at 0.6 MPa: 10 Nm
  • Permissible Mass Moment of Inertia: 0.075 kgm^2
  • Product Weight: 1475 g
  • Type of Mounting: Via female thread
  • Pneumatic Connection: G1/8
  • Material: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-32-270-P1-A-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
