185932

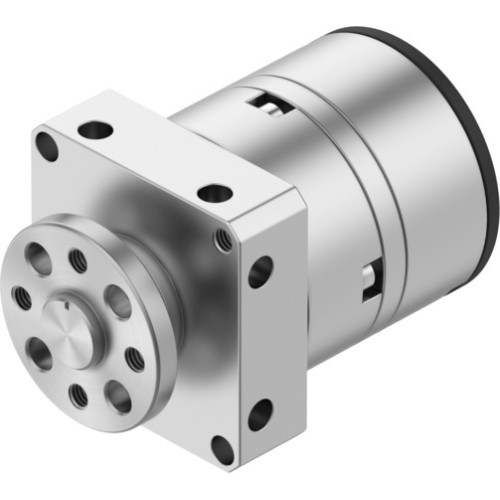

DSM-6-180-P-FF-FW Semi-rotary drive

Manufacturer's No: DSM-6-180-P-FF-FW     Manufacturer: Festo
DSM-6-180-P-FF-FW Semi-rotary drive

Availability On Request

£349.81
  • Semi-rotary drive DSM-6-180-P-FF-FW
  • Size: 6
  • Rotation angle adjustment range: 0 - 180 deg
  • Swivel angle: 0 - 180 deg
  • Cushioning angle: 0 deg
  • Fine adjustment: -5 deg
  • Mode of operation: Double-acting
  • Design: Vane
  • Operating pressure: 3.5 BAR to 8 BAR
  • Max. swivel frequency at 0.6 MPa: 3 HZ

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: 0°C to 60°C
  • Theoretical torque at 0.6 MPa: 0.15 NM
  • Permissible mass moment of inertia: 0.00065 KGY
  • Product weight: 76 G
  • Type of mounting: Via female thread
  • Pneumatic connection: M3
  • Material drive shaft: High-alloy stainless steel
  • Material seals: TPE-U(PU)
  • Material housing: Aluminium, Anodised
  • Note: Lubricated operation possible, RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-6-180-P-FF-FW
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£349.81
