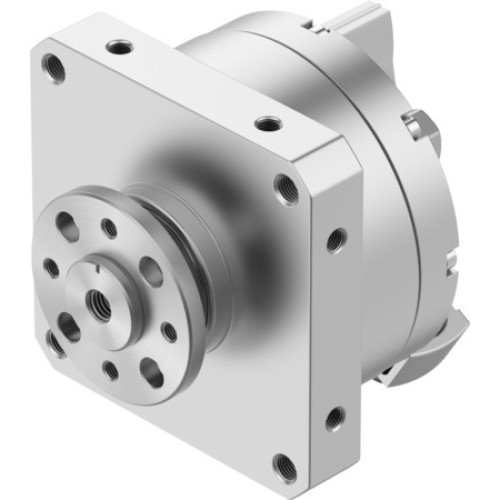

DSM-63-270-P-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-63-270-P-FW-A-B     Manufacturer: Festo
DSM-63-270-P-FW-A-B Semi-rotary drive

Availability On Request

£839.10
  • Model: DSM-63-270-P-FW-A-B
  • Size: 63
  • Rotation angle adjustment range: 0 - 270 degrees
  • Swivel angle: 0 - 270 degrees
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.15 MPa to 1.5 bar
  • Max. swivel frequency at 0.6 MPa: 1.6 Hz

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Ambient temperature: -10 to 60 degrees Celsius
  • Max. axial force: 500 N
  • Max. radial force: 500 N
  • Theoretical torque at 0.6 MPa: 40 Nm
  • Permissible mass moment of inertia: 0.15 kgm^2
  • Product weight: 5150 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/4
  • Material: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
DSM-63-270-P-FW-A-B
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£839.10
