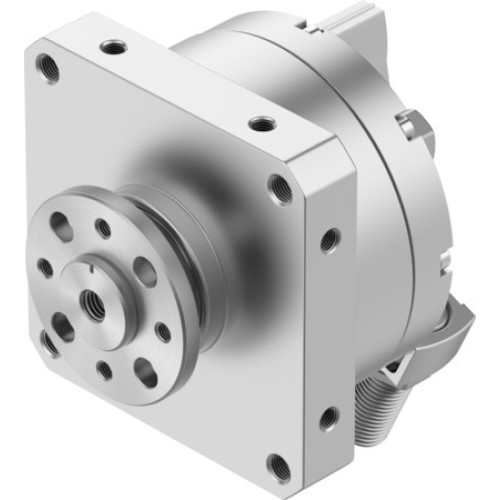

DSM-63-270-P1-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-63-270-P1-FW-A-B     Manufacturer: Festo
DSM-63-270-P1-FW-A-B Semi-rotary drive

Availability On Request

£882.22
  • Semi-rotary drive with size 63
  • Rotation angle adjustment range: 0 to 240 degrees
  • Cushioning with elastic rings/pads at both ends and fixed stop
  • Double-acting vane design
  • Position detection via proximity switch
  • Operating pressure range: 0.15 MPa to 10 bar
  • Max. swivel frequency at 0.6 MPa: 1.6 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature range: -10°C to 60°C
  • Max. axial force: 500 N
  • Max. radial force: 500 N
  • Theoretical torque at 0.6 MPa: 40 Nm
  • Permissible mass moment of inertia: 0.45 kgm^2
  • Product weight: 5340 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/4
  • RoHS-compliant materials: Steel drive shaft, nickel-plated; TPE-U(PU) seals; Wrought aluminium alloy housing


Product

Manufacturer Material ID -
DSM-63-270-P1-FW-A-B
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£882.22
