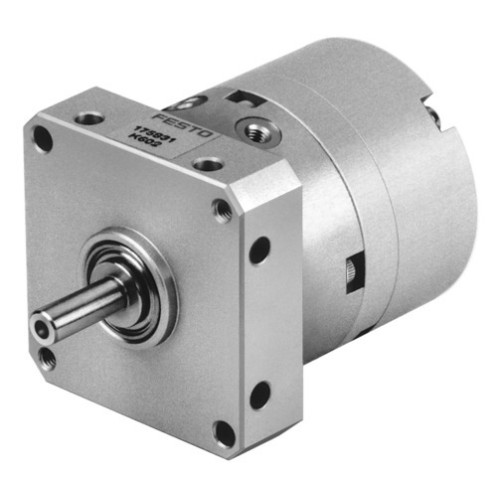

DSM-8-180-P-FF Semi-rotary drive

Manufacturer's No: DSM-8-180-P-FF     Manufacturer: Festo
DSM-8-180-P-FF Semi-rotary drive

Availability On Request

£347.76
  • Semi-rotary drive DSM-8-180-P-FF with spigot shaft and fixed stop
  • Size: 8
  • Rotation angle adjustment range: 0 - 180 degrees
  • Swivel angle: 0 - 180 degrees
  • Cushioning angle: 0 degrees
  • Operating pressure: 3.5 to 8 BAR
  • Max. swivel frequency at 0.6 MPa: 3 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: 0 to 60 degrees Celsius

Read more

  • Theoretical torque at 0.6 MPa: 0.35 Nm
  • Permissible mass moment of inertia: 0.0013 kgm^2
  • Product weight: 140 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M3
  • Material drive shaft: High-alloy stainless steel
  • Material seals: TPE-U(PU)
  • Material housing: Aluminium, anodised
  • Note: Lubricated operation possible, RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-8-180-P-FF
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£347.76
