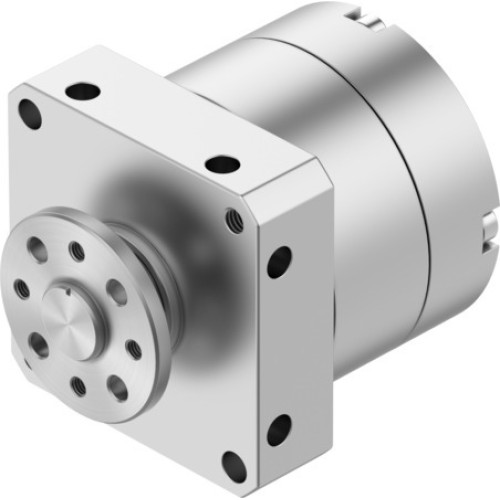

DSM-T-10-240-P-FW Semi-rotary drive

Manufacturer's No: DSM-T-10-240-P-FW     Manufacturer: Festo
DSM-T-10-240-P-FW Semi-rotary drive

Availability On Request

£390.36
  • Semi-rotary drive with size 10
  • Swivel angle of 240 degrees
  • Cushioning with elastic rings/plates at both ends
  • Double-acting vane design
  • Operating pressure of 3.5 to 8 BAR
  • Max. swivel frequency of 2 HZ at 0.6 MPa
  • Suitable for compressed air per ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature range: 0 to 60 degrees Celsius

Read more

  • Theoretical torque of 1.7 NM at 0.6 MPa
  • Permissible mass moment of inertia: 0.0026 KGY
  • Lightweight product weighing 210 g
  • Mounting via female thread with M3 pneumatic connection
  • RoHS-compliant materials used
  • Drive shaft made of high-alloy stainless steel
  • Seals made of TPE-U(PU)
  • Housing made of anodised aluminum


Product

Manufacturer Material ID -
DSM-T-10-240-P-FW
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
