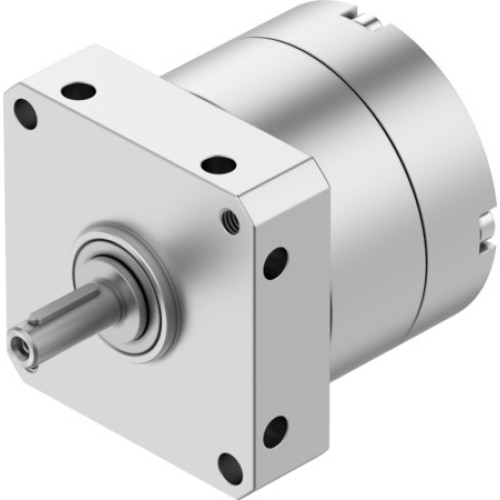

DSM-T-10-90-P Semi-rotary drive

Manufacturer's No: DSM-T-10-90-P     Manufacturer: Festo
DSM-T-10-90-P Semi-rotary drive

Availability On Request

£371.02
  • Type: Semi-rotary drive
  • Size: 10
  • Swivel angle: 90 degrees
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mode of operation: Double-acting
  • Design: Vane
  • Operating pressure: 3.5 bar and 8 bar
  • Max. swivel frequency at 0.6 MPa: 3 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: 0°C to 60°C
  • Theoretical torque at 0.6 MPa: 1.7 Nm
  • Permissible mass moment of inertia: 0.0026 kgm^2
  • Product weight: 200 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M3
  • RoHS-compliant materials
  • Material drive shaft: High-alloy stainless steel
  • Material seals: TPE-U(PU)
  • Material housing: Aluminium, anodised


Product

Manufacturer Material ID -
DSM-T-10-90-P
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£371.02
