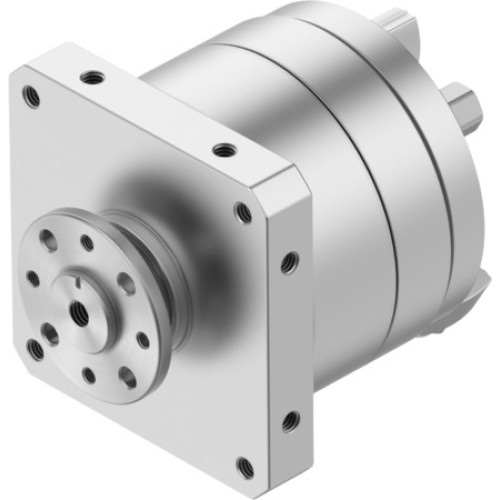

DSM-T-12-270-P-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-T-12-270-P-FW-A-B     Manufacturer: Festo
DSM-T-12-270-P-FW-A-B Semi-rotary drive

Availability On Request

£370.23
  • Semi-rotary drive
  • Size: 12
  • Rotation angle adjustment range: 270°
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Fine adjustment: -6°
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.25 MPa, 1 MPa, 2.5 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 2 Hz

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 18 N
  • Max. radial force: 45 N
  • Theoretical torque at 0.6 MPa: 2.5 Nm
  • Permissible mass moment of inertia: 0.005 kgm^2
  • Product weight: 383 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • Material: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-T-12-270-P-FW-A-B
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£370.23
