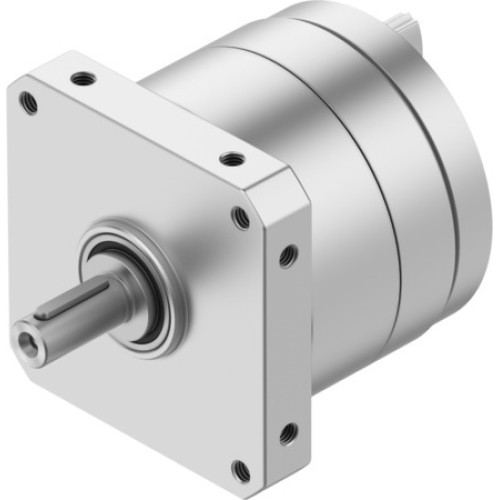

DSM-T-16-270-A-B Semi-rotary drive

Manufacturer's No: DSM-T-16-270-A-B     Manufacturer: Festo
DSM-T-16-270-A-B Semi-rotary drive

Availability On Request

£324.79
  • Semi-rotary drive with swivel angle of 270 DEG
  • Size: 16
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.25 MPa, 1 MPa, 2.5 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Ambient temperature: -10 to 60 degrees Celsius
  • Max. axial force: 30 N
  • Max. radial force: 75 N
  • Theoretical torque at 0.6 MPa: 5 Nm
  • Product weight: 590 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • RoHS-compliant materials: Steel drive shaft, nickel-plated drive shaft, TPE-U(PU) seals
  • Material housing: Wrought aluminium alloy


Product

Manufacturer Material ID -
DSM-T-16-270-A-B
Net Weight -
0.66kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£324.79
