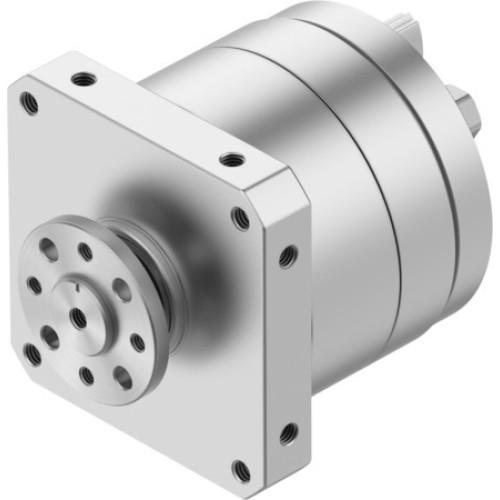

DSM-T-16-270-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-T-16-270-FW-A-B     Manufacturer: Festo
DSM-T-16-270-FW-A-B Semi-rotary drive

Availability On Request

£346.53
  • Semi-rotary drive
  • Size: 16
  • Swivel angle: 270°
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.25 MPa, 1 MPa, 2.5 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 30 N
  • Max. radial force: 75 N
  • Theoretical torque at 0.6 MPa: 5 Nm
  • Product weight: 630 g
  • Type of mounting: Via female thread
  • Pneumatic connection: M5
  • Material drive shaft: Steel, Nickel-plated
  • Material seals: TPE-U(PU)
  • Material housing: Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
DSM-T-16-270-FW-A-B
Net Weight -
0.73kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£346.53
