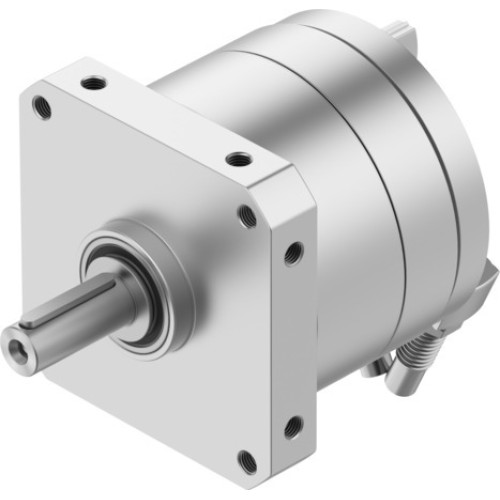

DSM-T-32-270-CC-A-B Semi-rotary drive

Manufacturer's No: DSM-T-32-270-CC-A-B     Manufacturer: Festo
DSM-T-32-270-CC-A-B Semi-rotary drive

Availability On Request

£781.67
  • Semi-rotary drive with size 32
  • Cushioning angle: 12 degrees
  • Rotation angle adjustment range: 0 to 246 degrees
  • Swivel angle: 0 to 246 degrees
  • Shock absorber cushioning at both ends
  • Mounting position optional
  • Fine adjustment: -3 degrees
  • Double-acting vane design
  • Position detection via proximity switch
  • Operating pressure: 0.2 MPa to 10 bar

Read more

  • Max. swivel frequency at 0.6 MPa: 0.7 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -10 to 60 degrees Celsius
  • Max. axial force: 75 N
  • Max. radial force: 200 N
  • Theoretical torque at 0.6 MPa: 20 Nm
  • Permissible mass moment of inertia: 0.05 kgm^2
  • Product weight: 2075 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/8
  • RoHS-compliant materials
  • Drive shaft material: Steel, nickel-plated
  • Seals material: TPE-U(PU)
  • Housing material: Wrought aluminium alloy


Product

Manufacturer Material ID -
DSM-T-32-270-CC-A-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
