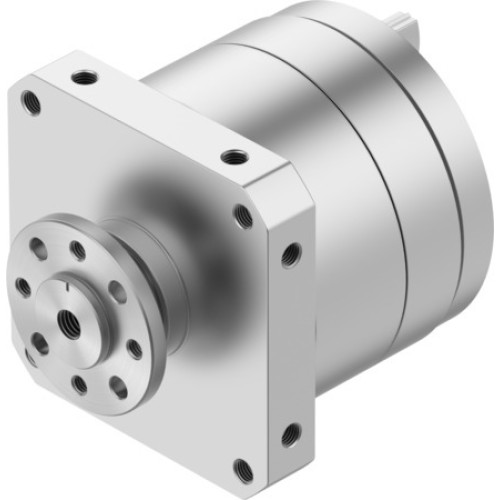

DSM-T-32-270-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-T-32-270-FW-A-B     Manufacturer: Festo
DSM-T-32-270-FW-A-B Semi-rotary drive

Availability On Request

£547.88
  • Semi-rotary drive DSM-T-32-270-FW-A-B
  • Size: 32
  • Swivel angle: 270°
  • Mounting position: optional
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010

Read more

  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 75 N
  • Max. radial force: 200 N
  • Theoretical torque at 0.6 MPa: 20 Nm
  • Product weight: 1940 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/8
  • Materials: RoHS-compliant, Steel drive shaft, Nickel-plated drive shaft, TPE-U(PU) seals, Wrought aluminium alloy housing


Product

Manufacturer Material ID -
DSM-T-32-270-FW-A-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£547.88
