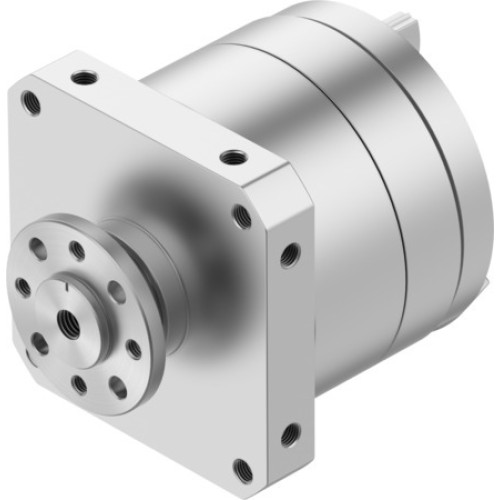

DSM-T-32-270-P-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-T-32-270-P-FW-A-B     Manufacturer: Festo
DSM-T-32-270-P-FW-A-B Semi-rotary drive

Availability On Request

£598.00
  • Semi-rotary drive
  • Size: 32
  • Rotation angle adjustment range: 270°
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mounting position: optional
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Ambient temperature: -10°C to 60°C

Read more

  • Max. axial force: 75 N
  • Max. radial force: 200 N
  • Theoretical torque at 0.6 MPa: 20 Nm
  • Permissible mass moment of inertia: 0.025 kgm^2
  • Product weight: 2115 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/8
  • Material: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy


Product

Manufacturer Material ID -
DSM-T-32-270-P-FW-A-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£598.00
