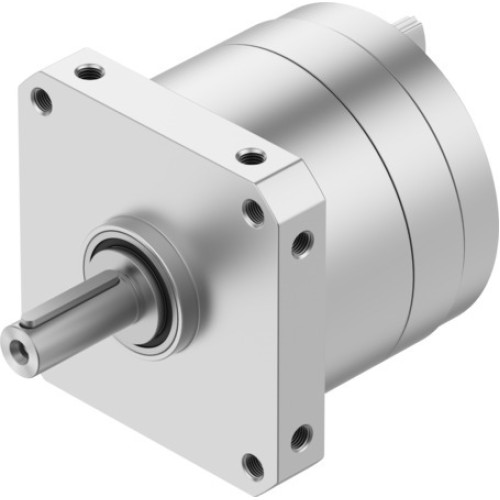

DSM-T-40-270-A-B Semi-rotary drive

Manufacturer's No: DSM-T-40-270-A-B     Manufacturer: Festo
DSM-T-40-270-A-B Semi-rotary drive

Availability Back Order

£656.59
  • Model: DSM-T-40-270-A-B
  • Size: 40
  • Swivel angle: 0° to 270°
  • Mode of operation: Double-acting
  • Design: Vane
  • Position detection: Via proximity switch
  • Operating pressure: 0.2 MPa, 1 MPa, 2 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 2 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -10°C to 60°C
  • Max. axial force: 120 N
  • Max. radial force: 350 N
  • Theoretical torque at 0.6 MPa: 40 Nm
  • Product weight: 3570 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/8
  • Materials: RoHS-compliant, Steel drive shaft, Nickel-plated drive shaft, TPE-U(PU) seals, Wrought aluminium alloy housing
