3018793

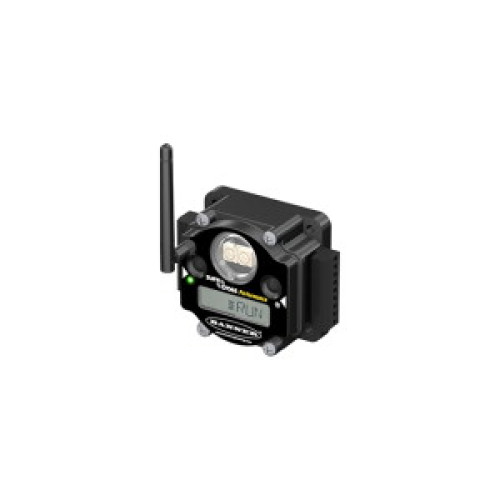

DX80 Perf 2.4 GHz Gateway 65 mW IP20 C, 10-30 V dc Ext Antenna RS485, Up to 12 Disc PNP IO, External Terminals

Manufacturer's No: DX80G2M6S-P8C     Manufacturer: Turck Banner
DX80 Perf 2.4 GHz Gateway 65 mW IP20 C, 10-30 V dc Ext Antenna RS485, Up to 12 Disc PNP IO, External Terminals

Availability On Request

£649.84
  • Radio Transmission System with Star Topology
  • Operating voltage: 10-30 VDC
  • Max. range: 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • Integrated signal strength indicator
  • Configuration via DIP switch
  • Modbus RTU communication with RS485 interface
  • Deterministic data transmission
  • Frequency hopping FHSS and Time Division Multiplex Access TDMA
  • Transmission power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)

Read more

  • Alternative register assignment
  • Inputs: up to 12 x PNP
  • Outputs: up to 12 x PNP
  • Max. 12 inputs and outputs
  • Power consumption: < 60 mA at 24 VDC


Product

Manufacturer Material ID -
DX80G2M6S-P8C
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
US
UNSPSC -
39121534
Turck Banner

Availability On Request

£649.84
