3018798

DX80 Performance 2.4 GHz Node 65 mW IP20, 10-30 V dc External Antenna, Input: 4 Discrete 2 Analog, Output: 4 Discrete 2 Analog 0-2

Manufacturer's No: DX80N2X6S-P2C     Manufacturer: Turck Banner

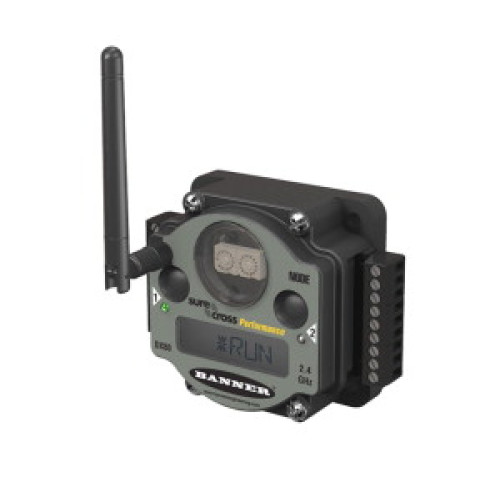

DX80 Performance 2.4 GHz Node 65 mW IP20, 10-30 V dc External Antenna, Input: 4 Discrete 2 Analog, Output: 4 Discrete 2 Analog 0-20 mA, External Terminals

Availability On Request

£649.84
  • Radio Transmission System with Star Topology
  • Node with operating voltage range of 10 to 30 VDC
  • Maximum range of 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • External terminal strip for easy connectivity
  • Integrated signal strength indicator
  • Configuration via DIP switch for easy setup
  • Deterministic data transfer for reliable communication
  • Frequency hopping FHSS for secure transmission
  • Time Division Multiplex Access TDMA for efficient data transfer

Read more

  • Transmission power of 63 mW (18 dBm conducted, ? 20 dBm EIRP)
  • Inputs: 4 x PNP, 2 x 0 to 20 mA or 0 to 10 V
  • Outputs: 4 x PNP, 2 x 0 to 20 mA or 0 to 10 V
  • Power consumption of less than 60 mA at 24 VDC


Product

Manufacturer Material ID -
DX80N2X6S-P2C
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85176200000
Country of Origin -
US
UNSPSC -
39121534
Turck Banner

Availability On Request

£649.84
