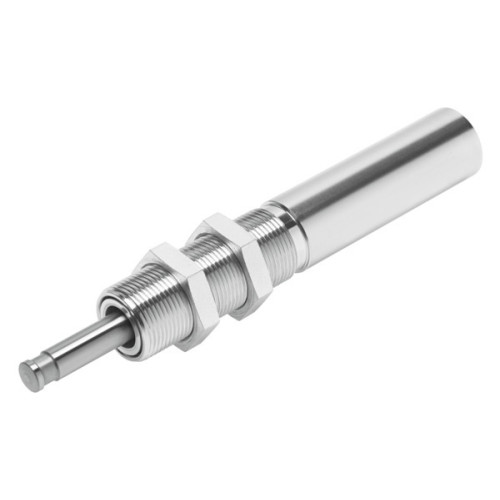

DYSR-16-20-Y5 Shock absorber

Manufacturer's No: DYSR-16-20-Y5     Manufacturer: Festo
DYSR-16-20-Y5 Shock absorber

Availability On Request

£229.30
  • Model: DYSR-16-20-Y5 Shock Absorber
  • Size: 16 mm
  • Stroke: 20 mm
  • Adjustable cushioning
  • Mounting position: Optional
  • Max. impact speed: 3 m/s
  • Reset time at room temperature: 0.3 s
  • Reset time at minimum ambient temperature: 1 s
  • Mode of operation: Pushing, Single-acting
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature range: -10°C to 80°C
  • Cushioning length: 20 mm
  • Max. stop force: 1600 N
  • Max. energy consumption per stroke: 32 J
  • Max. energy consumption per hour: 100000 J
  • Max. residual energy: 0.16 J
  • Reset force: 5.4 N
  • Min. insertion force: 66 N
  • Product weight: 200 g
  • Load range: Up to 160 kg
  • Type of mounting: Via lock nut
  • RoHS-compliant materials
  • Seals material: NBR
  • Housing material: Galvanised steel
  • Piston rod material: High alloy steel, hardened


Product

Manufacturer Material ID -
DYSR-16-20-Y5
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
84879059
Country of Origin -
DE
UNSPSC -
30102206
