1138641

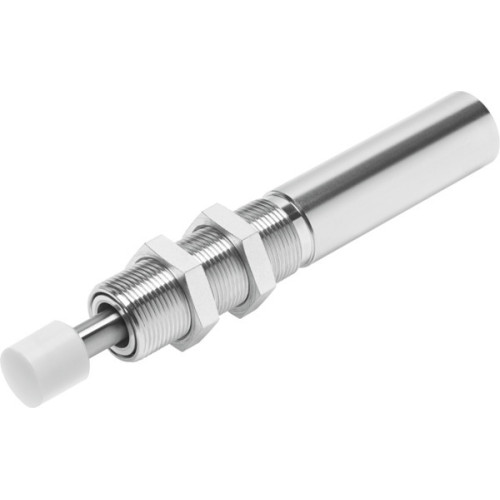

DYSR-8-8-Y5 Shock absorber

Manufacturer's No: DYSR-8-8-Y5     Manufacturer: Festo
DYSR-8-8-Y5 Shock absorber

Availability On Request

£123.85
  • Shock absorber model: DYSR-8-8-Y5
  • Size: 8mm
  • Stroke: 8mm
  • Adjustable cushioning
  • Max. impact speed: 3 m/s
  • Reset time at room temperature: 0.2s
  • Reset time at minimum ambient temperature: 3s
  • Mode of operation: Pushing, Single-acting
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Ambient temperature range: -10°C to 80°C
  • Cushioning length: 8mm
  • Max. stop force: 400N
  • Max. energy consumption per stroke: 4J
  • Max. energy consumption per hour: 24000J
  • Max. residual energy: 0.01J
  • Reset force: 1.8N
  • Min. insertion force: 18N
  • Product weight: 60g
  • Load range: Up to 40kg
  • Type of mounting: Via lock nut
  • RoHS-compliant materials
  • Seals material: NBR
  • Housing material: High-alloy steel
  • Piston rod material: High-alloy steel


Product

Manufacturer Material ID -
DYSR-8-8-Y5
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
84879059
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£123.85
