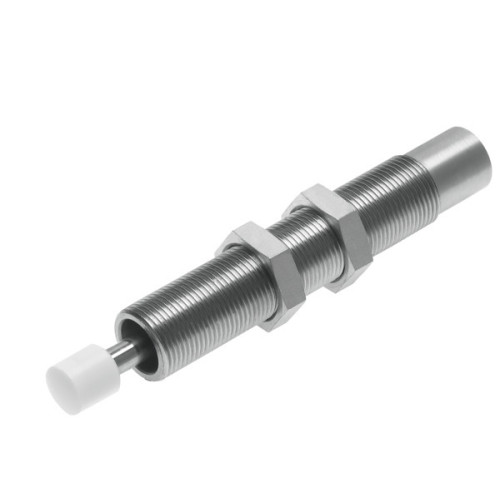

DYSW-8-14-Y1F Shock absorber

Manufacturer's No: DYSW-8-14-Y1F     Manufacturer: Festo
DYSW-8-14-Y1F Shock absorber

Availability Back Order

£107.29
  • Model: DYSW-8-14-Y1F Shock Absorber
  • Type: Self-adjusting with progressive characteristic curve
  • Size: 8
  • Stroke: 14 mm
  • Cushioning: Self-adjusting, Soft characteristic curve
  • Mounting Position: Any
  • Position Detection: No
  • Max. Impact Speed: 3 m/s
  • Reset Time at Room Temperature: 0.2 s
  • Reset Time at Min. Ambient Temperature: 1 s

Read more

  • Mode of Operation: Pushing, Single-acting
  • Corrosion Resistance Class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature Range: -10°C to 80°C
  • Cushioning Length: 14 mm
  • Max. Stop Force: 500 N
  • Max. Energy Consumption per Stroke: 4 J
  • Max. Energy Consumption per Hour: 21000 J
  • Max. Residual Energy: 0.02 J
  • Reset Force: 2.5 N
  • Min. Insertion Force: 18 N
  • Product Weight: 42 g
  • Load Range: Up to 10 kg
  • Type of Mounting: Via lock nut
  • Materials: RoHS-compliant, NBR seals, High-alloy steel housing and piston rod


Product

Manufacturer Material ID -
DYSW-8-14-Y1F
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
84879059
Country of Origin -
DE
UNSPSC -
30260000
