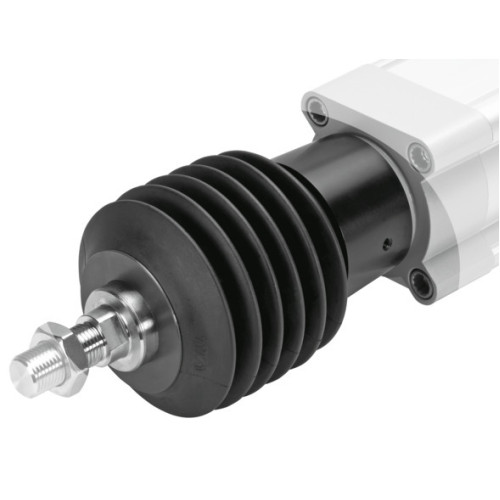

EADB-V2-32-S10-100 Bellows kit

Manufacturer's No: EADB-V2-32-S10-100     Manufacturer: Festo
EADB-V2-32-S10-100 Bellows kit

Availability On Request

£106.53
  • Bellows kit EADB-V2-32-S10-100
  • Outside diameter: 57mm
  • Size: 32
  • Stroke range: 10mm and 100mm
  • Piston rod extension: 52mm
  • Design: Round bellows kit with ducted exhaust air
  • Corrosion resistance class CRC: 3 (high corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Media resistance: Dust, chips, oils, grease, petrol
  • Degree of protection: IP65 to IEC 60529 standards

Read more

  • Ambient temperature: -10°C to 80°C
  • Moving mass: 46g
  • Product weight: 116g
  • Type of mounting: Push-on or via threaded pin
  • Pneumatic connection: G1/4
  • RoHS-compliant materials
  • Material adapter components: Wrought aluminium alloy, anodised
  • Material seals: NBR
  • Material bellows: NBR
  • Material threaded pin: High-alloy stainless steel


Product

Manufacturer Material ID -
EADB-V2-32-S10-100
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
40169997
Country of Origin -
DE
UNSPSC -
30102316
