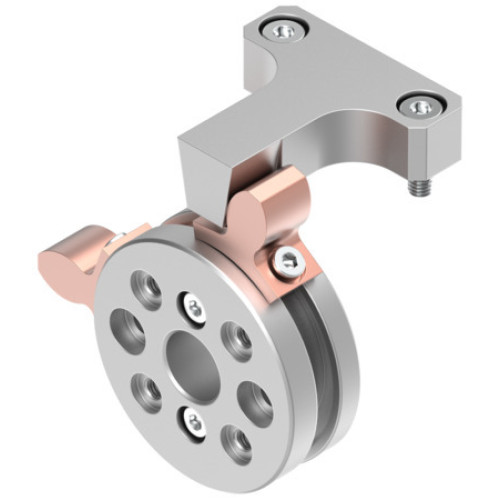

EADP-ES-R3-12 Stop (kit)

Manufacturer's No: EADP-ES-R3-12     Manufacturer: Festo
EADP-ES-R3-12 Stop (kit)

Availability On Request

£295.29
  • Stop (kit) Size: 12
  • Rotation angle adjustment range: 0° to 325°
  • Mounting position: optional
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Storage temperature: -20°C to 60°C
  • Ambient temperature: 0°C to 50°C
  • Mass moment of inertia JO: 0.35 kg·cm²
  • Product weight: 96 g
  • Type of mounting: Via female thread

Read more

  • Materials:
    • Stops: Beryllium bronze, nickel-plated
    • Flange: Wrought aluminium alloy, anodised
    • Retaining bracket: Wrought aluminium alloy, anodised
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EADP-ES-R3-12
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
84129080
Country of Origin -
DE
UNSPSC -
26101304
