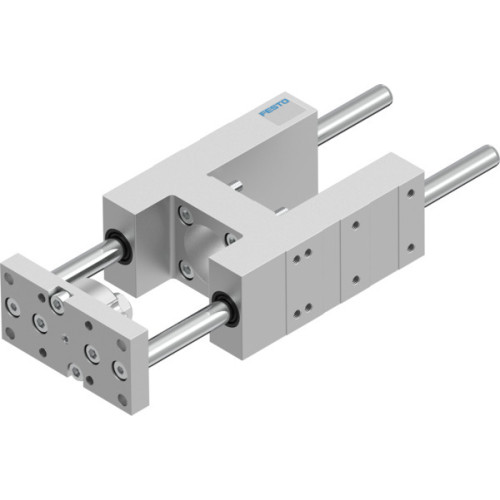

EAGF-V2-KF-32-100 Guide unit

Manufacturer's No: EAGF-V2-KF-32-100     Manufacturer: Festo
EAGF-V2-KF-32-100 Guide unit

Availability On Request

£468.67
  • Guide unit EAGF-V2-KF-32-100 for electric cylinder ESBF
  • Size: 32, Stroke: 100 mm
  • Reversing backlash: 0 µm
  • Guide: Recirculating ball bearing guide
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Max. force Fy: 750 N, Max. force Fy static: 1020 N
  • Max. force Fz: 750 N, Max. force Fz static: 1020 N
  • Max. moment Mx: 28 Nm, Max. torque Mx static: 38 Nm
  • Max. moment My: 34 Nm, Max. torque My static: 46 Nm

Read more

  • Max. moment Mz: 34 Nm, Max. torque Mz static: 46 Nm
  • Displacement force: 15 N
  • Moving mass: 904 g, Product weight: 1865 g
  • Centre of gravity at 0 mm stroke: 30 mm
  • Centre of gravity additional of moving mass per 10 mm: 4.1 mm
  • Ambient temperature: -20°C to 80°C
  • Type of mounting: Via female thread
  • Material guide component: Tempered steel
  • Material housing: Wrought aluminium alloy, Anodised
  • Material yoke plate: Steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EAGF-V2-KF-32-100
Net Weight -
1.67kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
31170000
Festo

Availability On Request

£468.67
