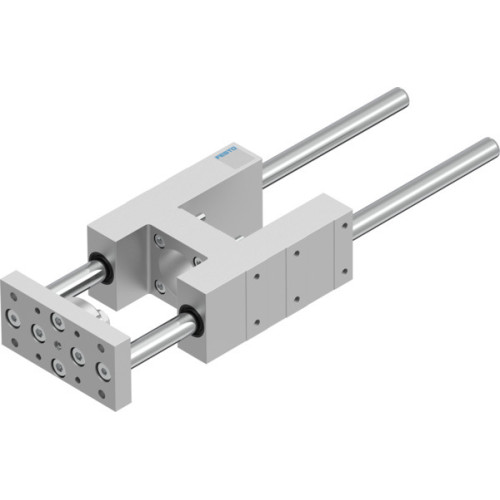

EAGF-V2-KF-40-200 Guide unit

Manufacturer's No: EAGF-V2-KF-40-200     Manufacturer: Festo
EAGF-V2-KF-40-200 Guide unit

Availability On Request

£629.16
  • Guide unit EAGF-V2-KF-40-200 for electric cylinder ESBF
  • Size: 40
  • Stroke: 200 mm
  • Reversing backlash: 0 µm
  • Guide: Recirculating ball bearing guide
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy: 1000 N (static: 1260 N)
  • Max. force Fz: 1000 N (static: 1260 N)

Read more

  • Max. moment Mx: 44 Nm (static: 55 Nm)
  • Max. moment My: 52 Nm (static: 65 Nm)
  • Max. moment Mz: 52 Nm (static: 65 Nm)
  • Displacement force: 15 N
  • Moving mass: 1923 g
  • Product weight: 3157 g
  • Centre of gravity at 0 mm stroke: 38 mm
  • Centre of gravity additional of moving mass per 10 mm: 4.2 mm
  • Type of mounting: Via female thread
  • Materials: RoHS-compliant, tempered steel (guide component), wrought aluminum alloy (housing), anodized (housing), steel (yoke plate)


Product

Manufacturer Material ID -
EAGF-V2-KF-40-200
Net Weight -
3.11kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
31170000
Festo

Availability On Request

£629.16
