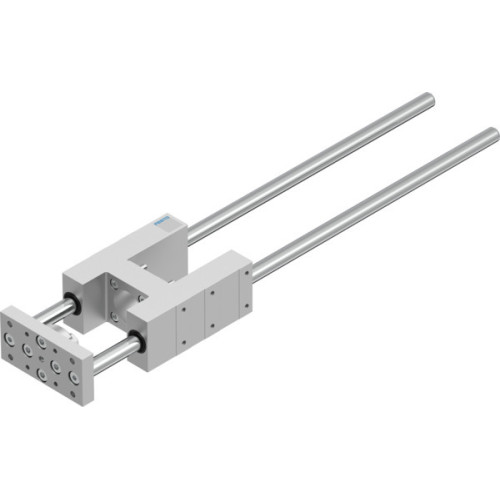

EAGF-V2-KF-40-400 Guide unit

Manufacturer's No: EAGF-V2-KF-40-400     Manufacturer: Festo
EAGF-V2-KF-40-400 Guide unit

Availability On Request

£673.18
  • Guide unit EAGF-V2-KF-40-400 for electric cylinder ESBF
  • Size: 40
  • Stroke: 400 mm
  • Reversing backlash: 0 µm
  • Guide: Recirculating ball bearing guide
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy: 1000 N (static: 1260 N)
  • Max. force Fz: 1000 N (static: 1260 N)

Read more

  • Max. moments: Mx: 44 Nm (static: 55 Nm), My: 52 Nm (static: 65 Nm), Mz: 52 Nm (static: 65 Nm)
  • Displacement force: 15 N
  • Moving mass: 2563 g
  • Product weight: 3797 g
  • Centre of gravity at 0 mm stroke: 38 mm
  • Centre of gravity additional of moving mass per 10 mm: 4.2 mm
  • Type of mounting: Via female thread
  • RoHS-compliant materials
  • Material guide component: Tempered steel
  • Material housing: Wrought aluminium alloy (Anodised)
  • Material yoke plate: Steel


Product

Manufacturer Material ID -
EAGF-V2-KF-40-400
Net Weight -
3.73kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
31170000
Festo

Availability On Request

£673.18
