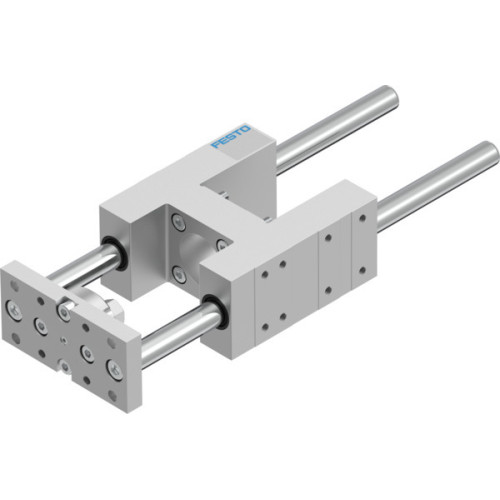

EAGF-V2-KF-50-200 Guide unit

Manufacturer's No: EAGF-V2-KF-50-200     Manufacturer: Festo
EAGF-V2-KF-50-200 Guide unit

Availability On Request

£724.31
  • Guide unit EAGF-V2-KF-50-200 for electric cylinder ESBF
  • Size: 50, Stroke: 200 mm
  • Reversing backlash: 0 µm
  • Guide: Recirculating ball bearing guide
  • Max. force Fy: 1260 N, Max. force Fz: 1260 N
  • Max. moment Mx: 65 Nm, Max. moment My: 70 Nm, Max. moment Mz: 70 Nm
  • Displacement force: 15 N
  • Moving mass: 1995 g, Product weight: 5039 g
  • Centre of gravity at 0 mm stroke: 46 mm
  • Type of mounting: Via female thread

Read more

  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -20°C to 80°C
  • Material guide component: Tempered steel
  • Material housing: Wrought aluminium alloy, Anodised
  • Material yoke plate: Steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EAGF-V2-KF-50-200
Net Weight -
4.82kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
31170000
Festo

Availability On Request

£724.31
