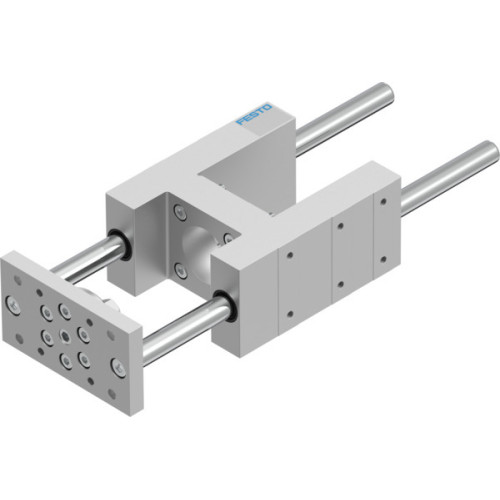

EAGF-V2-KF-63-200 Guide unit

Manufacturer's No: EAGF-V2-KF-63-200     Manufacturer: Festo
EAGF-V2-KF-63-200 Guide unit

Availability On Request

£958.66
  • Guide unit EAGF-V2-KF-63-200 for electric cylinder ESBF
  • Size: 63
  • Stroke: 200 mm
  • Reversing backlash: 0 µm
  • Guide: Recirculating ball bearing guide
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Max. force Fy: 1260 N (static: 1600 N)
  • Max. force Fz: 1260 N (static: 1600 N)
  • Max. moments: Mx: 75 Nm (static: 95 Nm), My: 90 Nm (static: 115 Nm), Mz: 90 Nm (static: 115 Nm)

Read more

  • Displacement force: 15 N
  • Moving mass: 3539 g
  • Product weight: 6505 g
  • Centre of gravity at 0 mm stroke: 48 mm
  • Centre of gravity additional of moving mass per 10 mm: 4.1 mm
  • Ambient temperature: -20°C to 80°C
  • Type of mounting: Via female thread
  • Material guide component: Tempered steel
  • Material housing: Wrought aluminium alloy (Anodised)
  • Material yoke plate: Steel
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
EAGF-V2-KF-63-200
Net Weight -
6.36kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
31170000
Festo

Availability On Request

£958.66
