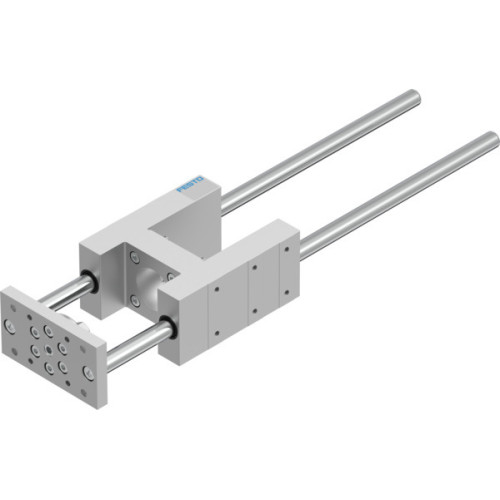

EAGF-V2-KF-63-400 Guide unit

Manufacturer's No: EAGF-V2-KF-63-400     Manufacturer: Festo
EAGF-V2-KF-63-400 Guide unit

Availability On Request

£978.54
  • Guide Unit: EAGF-V2-KF-63-400 for electric cylinder ESBF
  • Size: 63
  • Stroke: 400 mm
  • Reversing Backlash: 0 µm
  • Guide: Recirculating ball bearing guide
  • Max. Force Fy: 1260 N (static: 1600 N)
  • Max. Force Fz: 1260 N (static: 1600 N)
  • Max. Moment Mx: 75 Nm (static: 95 Nm)
  • Max. Moment My: 90 Nm (static: 115 Nm)
  • Max. Moment Mz: 90 Nm (static: 115 Nm)

Read more

  • Displacement Force: 15 N
  • Moving Mass: 4525 g
  • Product Weight: 7485 g
  • Centre of Gravity at 0 mm Stroke: 48 mm
  • Centre of Gravity Additional of Moving Mass per 10 mm: 4.1 mm
  • Mounting: Via female thread
  • Corrosion Resistance Class CRC: 0 (No corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: -20°C to 80°C
  • Material Guide Component: Tempered steel
  • Material Housing: Wrought aluminium alloy (Anodised)
  • Material Yoke Plate: Steel
  • RoHS-Compliant Materials


Product

Manufacturer Material ID -
EAGF-V2-KF-63-400
Net Weight -
7.35kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
31170000
