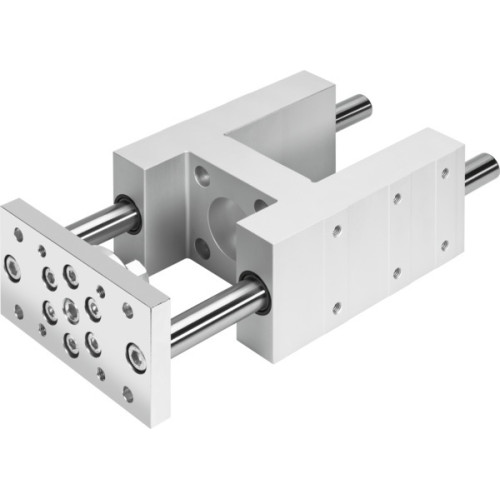

EAGF-V2-KF-80-200 Guide unit

Manufacturer's No: EAGF-V2-KF-80-200     Manufacturer: Festo
EAGF-V2-KF-80-200 Guide unit

Availability Back Order

£1,248.39
  • Guide unit EAGF-V2-KF-80-200 for electric cylinder ESBF
  • Size: 80
  • Stroke: 200 mm
  • Reversing backlash: 0 µm
  • Guide: Recirculating ball bearing guide
  • Max. force Fy: 2300 N
  • Max. force Fz: 2300 N
  • Max. moment Mx: 170 Nm
  • Max. torque Mx static: 231 Nm
  • Moving mass: 6682 g

Read more

  • Product weight: 12037 g
  • Material guide component: Tempered steel
  • Material housing: Wrought aluminium alloy, anodised
  • Material yoke plate: Steel
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Ambient temperature: -20°C to 80°C
  • Type of mounting: Via female thread
  • RoHS-compliant materials
  • LABS (PWIS) conformity: VDMA24364-B2-L


Product

Manufacturer Material ID -
EAGF-V2-KF-80-200
Net Weight -
11.89kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
31170000
Festo

Availability Back Order

£1,248.39
