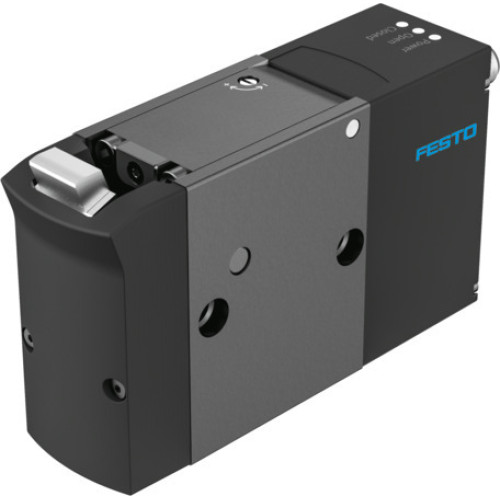

EFSD-100-PV-M12 Stopper cylinder

Manufacturer's No: EFSD-100-PV-M12     Manufacturer: Festo
EFSD-100-PV-M12 Stopper cylinder

Availability On Request

£1,203.89
  • Design: Electric stopper cylinder
  • Size: 100
  • Mounting position: Optional
  • Position detection: With Hall sensor
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • Ambient temperature: -10°C to 60°C
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0-95%, non-condensing
  • Cushioning length: 18.2 mm
  • Product weight: 985 g

Read more

  • Max. cycle frequency: 0.33 Hz
  • Type of mounting: Via mounting kit
  • Return-stroke time: 300 s
  • Advance time: 200 s
  • Permissible lateral force during switching operation: 100 N
  • Approval: RCM trademark
  • Note on materials: RoHS-compliant, LABS (PWIS) conformity: VDMA24364 zone III
  • Material cover: PA, PA-reinforced
  • Material seals: NBR
  • Material housing: Hard anodised wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Material screws: Coated steel
  • Max. current consumption: 2000 A
  • Nominal operating voltage DC: 24 V
  • Permissible voltage fluctuations: +/- 15%
  • Type of motor: Stepper motor
  • KC mark: KC-EMV
  • CE mark: To EU EMC Directive
  • UKCA marking: To UK instructions for EMC
  • Degree of protection: IP40
  • Max. cable length: 30 m
  • Ready status indication: LED
  • Electrical connection for actuator: Plugs, M12x1, A-coded to EN 61076-2-101, 5 pins/wires, max. current consumption: 1.4 A
  • Electrical connection for sensor: Plugs, M12x1, A-coded to EN 61076-2-101, 5 pins/wires, max. current consumption: 0.3 A


Product

Manufacturer Material ID -
EFSD-100-PV-M12
Net Weight -
1.05kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
