1SPE007715F0732

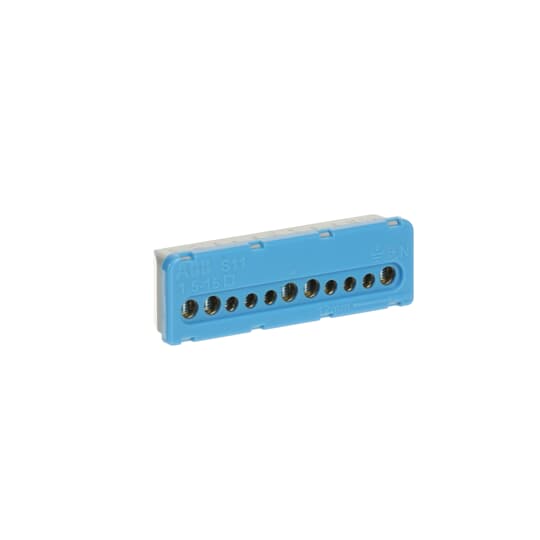

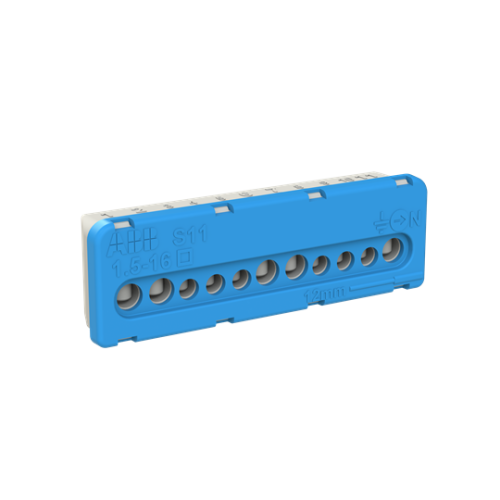

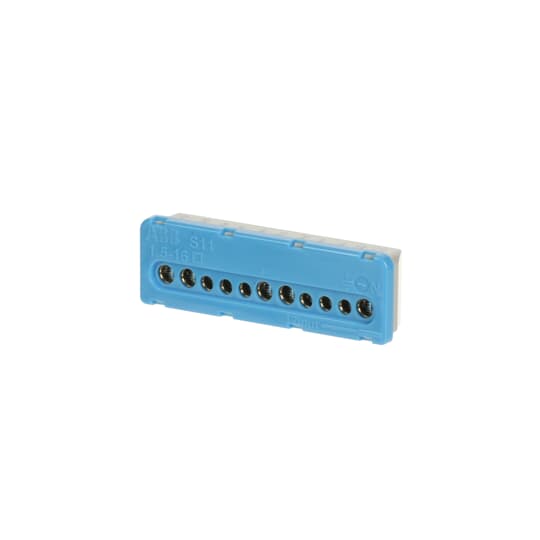

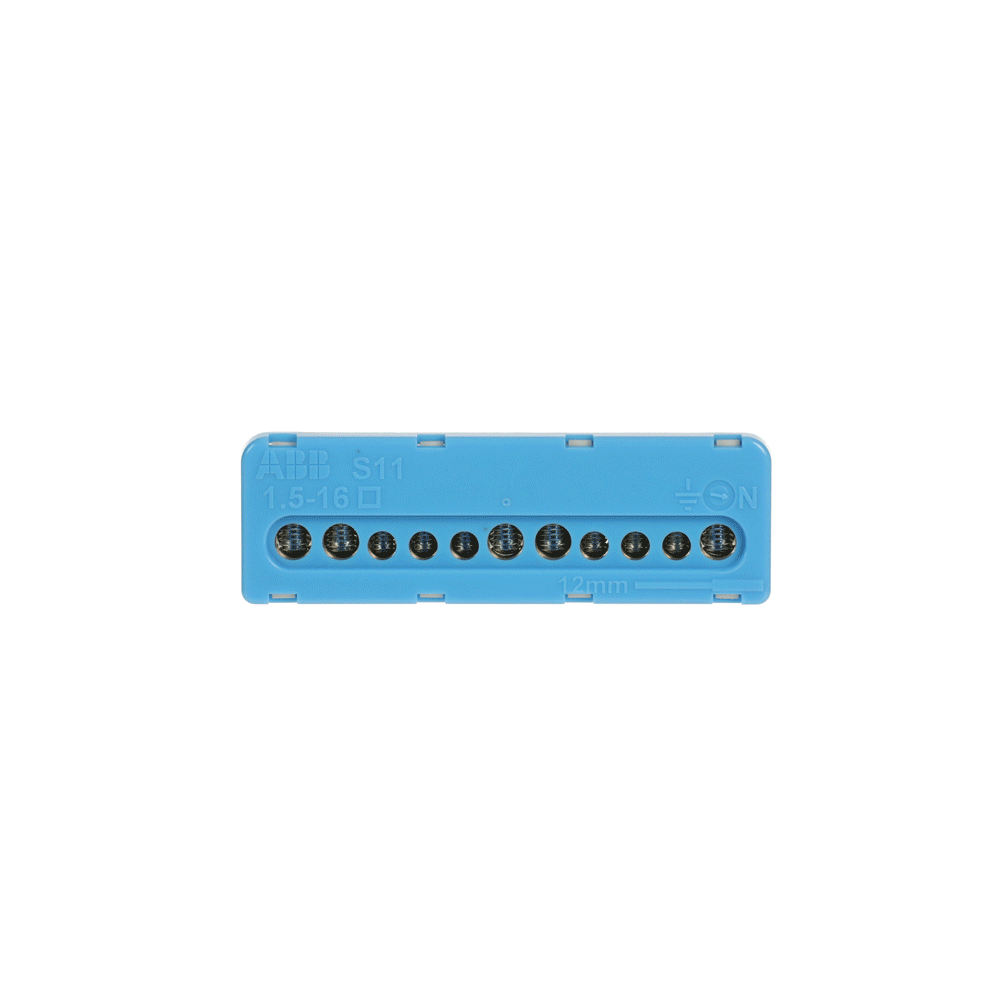

41Z58 Terminal block N 5x16mm²+6x6mm², 100 A A

Manufacturer's No: eg M4/6     Manufacturer: ABB

Availability Back Order

£4.44
  • Terminal block
    • Model: 41Z58
    • Configuration: 5x16mm² + 6x6mm²
    • Current rating: 100A


Product

Manufacturer Material ID -
eg M4/6
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
NL
Minimum Order Quantity -
1
UNSPSC -
39121410

Technical Specification

Number of poles -
-
Number of clamp positions per pole -
-
Width/grid dimension -
- Millimetre
Height at lowest possible mounting height -
- Millimetre
Type of electrical connection 2 -
UN
Drill hole distance centrically -
- Millimetre
Length -
11 Millimetre
Operation temperature -
-25 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
Other
Type of electrical connection 1 -
Screw connection
Connectable conductor cross section solid-core -
6 Square millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connection position -
Above
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
6 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Depth -
24 Millimetre
Height -
24 Millimetre
Material insulation body -
Thermoplastic
Mounting method -
Direct mounting
Operating temperature -
-25 Degrees celsius
Rated current In -
100 Ampere
Rated voltage -
400 Volt
Width -
82 Millimetre
ABB

Availability Back Order

£4.44
