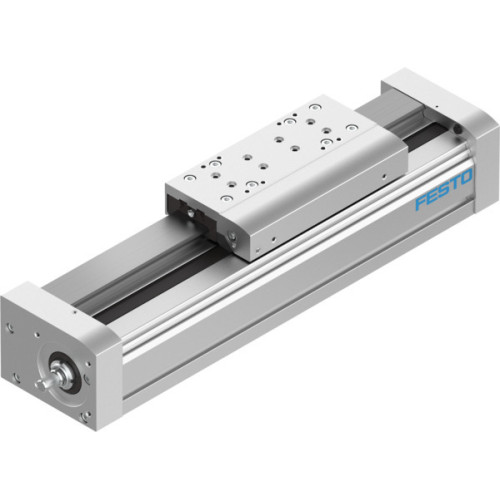

EGC-120-200-BS-10P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-120-200-BS-10P-KF-0H-ML-GK     Manufacturer: Festo
EGC-120-200-BS-10P-KF-0H-ML-GK Ball screw axis

Availability On Request

£2,218.86
  • Working stroke: 200 mm
  • Size: 120
  • Spindle diameter: 25 mm
  • Spindle pitch: 10 mm/U
  • Max. acceleration: 15 m/s²
  • Max. speed: 0.6 m/s
  • Repetition accuracy: ±0.02 mm
  • Max. force Fy: 6890 N
  • Max. force Fz: 6890 N
  • Max. moment My: 380 Nm

Read more

  • Max. moment Mz: 380 Nm
  • Max. feed force Fx: 1500 N
  • Torsional mass moment of inertia It: 1430000 mm^4
  • Material: End cap, driver, profile - Wrought aluminum alloy, anodized
  • Material: Guide slide, guide rail - Steel
  • Material: Slide - Wrought aluminum alloy, anodized
  • Material: Spindle nut, spindle - Steel
  • Design: Electromechanical linear axis with ball screw
  • Motor type: Stepper and servo motor
  • Guide: Recirculating ball bearing guide
  • Duty cycle: 100%
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Degree of protection: IP40
  • Ambient temperature: -10°C to 60°C
  • Reference service life: 5000 km
  • Note: RoHS-compliant materials


Product

Manufacturer Material ID -
EGC-120-200-BS-10P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
