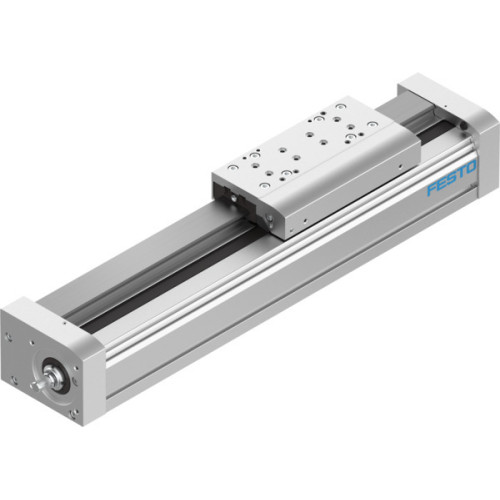

EGC-120-300-BS-25P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-120-300-BS-25P-KF-0H-ML-GK     Manufacturer: Festo
EGC-120-300-BS-25P-KF-0H-ML-GK Ball screw axis

Availability On Request

£2,314.08
  • Type: Ball screw axis
  • Model: EGC-120-300-BS-25P-KF-0H-ML-GK
  • Working Stroke: 300 mm
  • Size: 120
  • Spindle Diameter: 25 mm
  • Spindle Pitch: 25 mm/U
  • Guide: Recirculating ball bearing guide
  • Design: Electromechanical linear axis with ball screw
  • Motor Type: Stepper motor, Servo motor
  • Max. Acceleration: 15 m/s²

Read more

  • Max. Speed: 1.5 m/s
  • Repetition Accuracy: ±0.02 mm
  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Forces: Fy 6890 N, Fz 6890 N
  • Max. Moments: Mx 144 Nm, My 380 Nm, Mz 380 Nm
  • Max. Radial Force at Drive Shaft: 500 N
  • Max. Feed Force: Fx 1500 N
  • Torsional Mass Moment of Inertia: 1430000 kg·cm²
  • Feed Constant: 25 mm/U
  • Reference Service Life: 5000 km
  • Materials: Aluminum alloy, Steel
  • RoHS-Compliant


Product

Manufacturer Material ID -
EGC-120-300-BS-25P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£2,314.08
