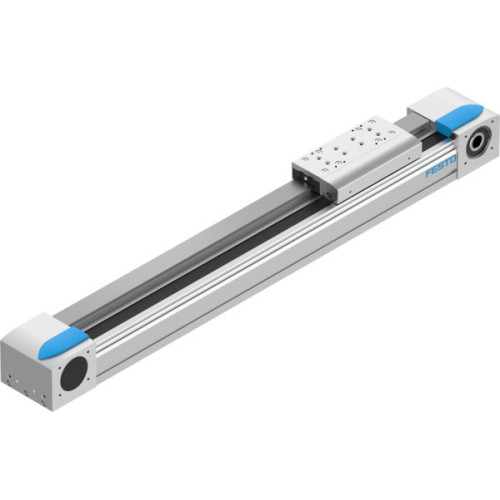

EGC-120-600-TB-KF-0H-GK Toothed belt axis

Manufacturer's No: EGC-120-600-TB-KF-0H-GK     Manufacturer: Festo
EGC-120-600-TB-KF-0H-GK Toothed belt axis

Availability On Request

£2,110.48
  • Type: Toothed belt axis
  • Model: EGC-120-600-TB-KF-0H-GK
  • Drive Pinion Diameter: 39.79 mm
  • Working Stroke: 600 mm
  • Size: 120
  • Toothed Belt Pitch: 5 mm
  • Mounting Position: Optional
  • Guide: Recirculating ball bearing guide
  • Motor Type: Stepper motor, Servo motor
  • Max. Acceleration: 50 m/s²

Read more

  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm
  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • IP Protection Rating: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Force: 6890 N (Fy, Fz)
  • Max. Total Axis Force: 6890 N (Fy, Fz)
  • Max. Idle Running Transfer Resistance: 70 N
  • Max. Moment: 380 Nm (My, Mz)
  • Max. Total Axis Moment: 380 Nm (My, Mz)
  • Max. Feed Force: 800 N
  • Torsional Mass Moment of Inertia: 2680000 Y12
  • Material: Wrought aluminium alloy, Anodised (End cap, Profile, Drive cover)
  • Material: Steel (Guide slide, Guide rail)
  • Material: High-alloy stainless steel (Pulleys)
  • Material: Polychloroprene with glass filament and nylon coating (Toothed belt)
  • Note: RoHS-compliant


Product

Manufacturer Material ID -
EGC-120-600-TB-KF-0H-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
